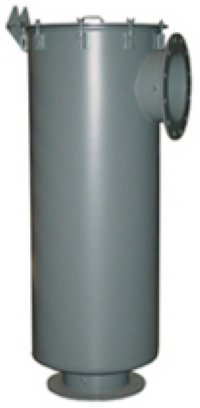

Large Inlet Vacuum Filters

Features and Specifications:

· Temp (continuous): min ‐15°F (‐26°C) max 220°F (104°C)

· Filter change out differential: 10”-15” H²O over initial delta P

· Pressure drop graphs available upon request

· Polyester: 99% + removal efficiency standard to 5 micron

· Paper: 99% + removal efficiency standard to 2 micron

· Large dirt holding capacity and Easy field cleaning, especially when mounted horizontally or inverted

· Rugged all steel construction with baked enamel finish

· Heavy duty T bolts for easy maintenance

· Hydro-statically tested to 0.5 bar pressure for vacuum tightness

· Positive engagement O-ring seal system

· Inlet/Outlet 1/4" gauge taps standard
