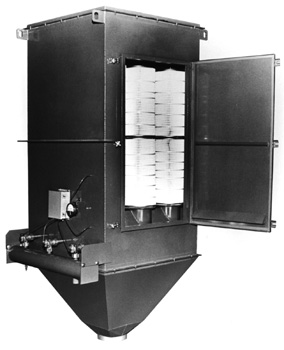

| This is performance and
reliability in a compact package that fits anywhere. But
installation flexibility isn't the only benefit of Griffin's
cartridge collectors. They also deliver high filtration efficiency
with minimal pressure drop. And with true down flow operation, there
is less dust re-entrainment. As a result, our Vect-Aire collectors
are ideal for in-plant dust and product recovery.
Like all of our dust collection
systems, these units are built to be exceptionally rugged and ready
to stand up to heavy-duty use. With a wide range of options, they'll
bring you the flexibility to meet your application needs. |
|
 |
|
DESIGN FEATURES
- 10 standard models
- 100 cfm to 20,000 cfm
- Media area from 70 sq.ft. to
12,000 sq.ft.
- Housing and hopper constructed of
continuously welded HRS
|
|
VECT-AIRE FLOW
PATTERN |
- From entry to discharge, dust
always travels downward between vertical cartridge filters, never
impeded by counter flowing air.
- Light dust particles are collected
on outer cartridge surfaces while heavier particles are driven
downward to hopper.
- Unlike horizontal cartridges,
vertical filters are uniformly effective over the entire surface.
- Venturi assisted jet pulse
cleaning assures minimum recapture of dislodged dust during
cleaning cycle.
- Dust entering at the top of the
collector won't disturb dust already settled in the hopper.
|
 |
|
ACCESSORIES/OPTIONS
- Structural support steel
- Slide gates
- Air locks
- Access platforms
- Fans
- Electrical controls package
- (NEMA 4,7,9)
- Pressure relief doors
- Pressure gauges
- Special paints
- Stainless steel construction
- Filter media options
Cellulose materials
Plain or treated for high efficiency and long life
Cellulose-polyester blend
Felted materials
Aramid (Nomex®)
Acrylic coated polyester
Spunbond polyester
Spunbond Aramid
PTFE membrane finishes available for all materials
|
|
Nomex® - Registered Trademark of Dupont
|
|
|
|
