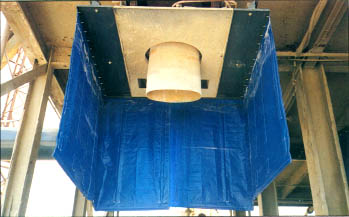

The Dust Hugger, Model TH-90, by Griffin Environmental achieves the very best dust control with both ease and economy.

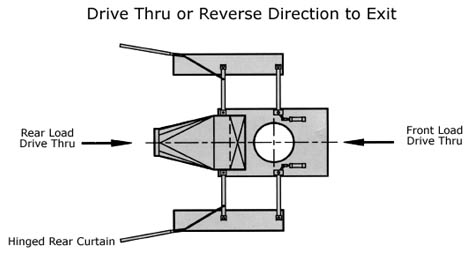

Dust control begins with the hood. The hood should capture the greatest amount of dust with minimum energy. An effective hood must allow easy access for both front load and rear load trucks, whether they back in or drive through. The Dust Hugger accomplishes all this while enabling the batch operator superb visibility for proper truck positioning.

As the Dust Hugger hood captures the dust, it is the downstream Dust Collector that contains the dust while allowing clean air to pass through the fan to the atmosphere. We offer several models of Dust Collectors specifically for concrete batch plants. All are field proven to give years of reliable service.

Our collection systems for batch plants are recognized by the EPA and state environmental authorities as best available control technology. With reasonable maintenance, these baghouses will operate at better than 99.9% efficiency on captured dust. Emission of dust to the air is reliably below .01 grains per cubic foot of exhausted air.

A Griffin Clean-A-Batch system gives you the best assurance for full environmental dust compliance. We invite you to call an authorized Griffin dealer, or call directly to our application engineering department to discuss your needs.

(Pat. #5,191,909 and 5,345,982)

For a complete Dust Collection System see Clean-A-Batch


For additional information on sizing or application call today toll free

866-630-3500

or e-mail us today sales@globaltecheng.com
