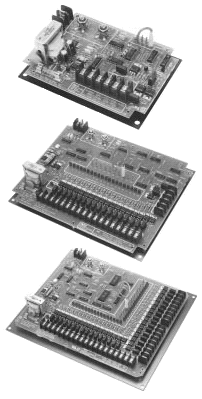

Dust Collector
Timer Boards
|
Time
Delay
On-Time:
Adjustable from 50 to 500 milliseconds
Off-Time: Range A - adjustable
from 1.5 to 30 seconds; Range B -
adjustable from 8.5 to 180 seconds
Note: Range S designates
customer specified time range. Consult
factory for parameters
Repeatability: ± 3% over
temperature and voltage ranges |
Input
Operating Voltage:
120 ± 10%, 220 ±10%
VAC
Frequency: 50/60 Hz
Power Consumption: 2 VA Max. |
Output
Type:
Solid-state switch (Triac)
Switch Rating: 200 VA maximum
per output |
Protection
Transient Voltage:
30 joule metal oxide varistor
Short Circuit Protection: 3
Amp. fuse |
Environmental
Operating
Temperature: -40°C to 66°C
Storage Temperature: -40°C to
70°C |
|
|
