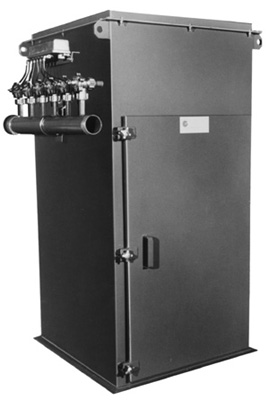

Like all of our dust collection systems, these units are built to be exceptionally rugged and ready to stand up to heavy-duty use. With a wide range of options, they'll bring you the flexibility to meet your application needs.

DESIGN FEATURES

• Over 31 standard models available
• Available with nominal 4" or 6" diameter filter bags
• Modular design for unlimited airflow
• Standard units designed for -20" W.G.
• Housing and hopper constructed of continuously welded HRS
• Control panel in NEMA 4 enclosure standard for all Jet-Vent models-shipped loose for field mounting
• Standard bag removal is from the side access door

VERSATILE AND EFFICIENT OPERATION

1. Dust laden air enters the collector through the hopper or through a high-entry inlet housing section.
2. An internal baffle distributes the dirty air within the housing, reducing air velocity.
3. Heavier particles drop into the hopper, while lighter particles collect on the outside surface of the bags.
4. Filtered clean air flows to the clean-air chamber and exhausts through the outlet.
5. Periodic compressed-air pulsing removes accumulated dust from the bags with cleaning frequency and duration adjusted by solid-state timers.
6. Dust falls into the hopper or bin for removal.

• Fans – available as required, suitable for grade level, side or top mounting on collector
• Barrel hopper assembly – standard 60 degree slope with flanged discharge and support legs
• Other accessories – elevated walkway, railing, ladder, slide gate, rotary air lock, insulation, safety grating, companion flange, bird screening, roof adapter

• Explosive conditions – NEMA 7 or 9 control panels, NEMA 7 or 9 solenoid enclosures, pressure relief devices, electrical grounding

• Special construction – stainless steel or special alloy steels

• Sanitary finishes – available for food grade applications

• Special surface finishes – sand blasting, epoxy and other coatings

• Pressure gauges and switches – combination differential pressure switches/gauges, differential pressure switches

• Filter media – singed polyester felt is standard. Nomex®, polypropylene, fiberglass, acrylic, and Ryton® also available

• Filter media finishes – PTFE membrane, acrylic, glazing and other acid resistant finishes also available.
