Choose from a wide range of standard models, options and accessories. Or if your application is unique, we'll custom design a system to meet your particular needs.

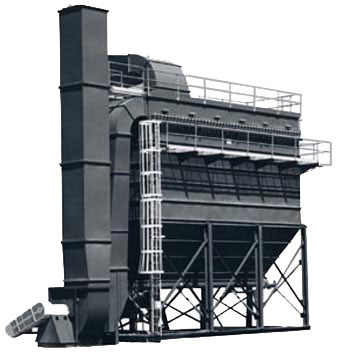

JET-AIRE FEATURES

• Removable top access doors.
• Easy bag replacement through top clean air side of baghouse.
• Walkway and ladder package per OSHA specifications.
• Cages of 11 gauge galvanized wire support bags.
• Standard bags are 16 oz. singed polyester felt, snap-band style.
• NEMA 4 control panel is side mounted and wired to solenoid valves. Magnehelic gauge shipped loose.
• Top railing with ladder access meets OSHA specifications.
• Compressed air manifold with pressure gauge is located below diaphragm and solenoid valve assemblies.
• Diaphragm and solenoid valves connected by copper tubing. Solenoid valves are in NEMA 4 enclosures.
• Factory tested valves and electrical controls. Compressed air manifold is pressure tested in our shop.
• Heavy-duty construction Baghouse and hopper are 12-gauge HRS welded construction. Tube sheet is 10-gauge. Standard design is -20" WG and 280° F

VERSATILE AND EFFICIENT OPERATION

1. Dust laden air enters the collector through the hopper or through a high-entry inlet housing section.
2. An internal baffle distributes the dirty air within the housing, reducing air velocity.
3. Heavier particles drop into the hopper, while lighter particles collect on the outside surface of the bags.
4. Filtered clean air flows to the clean-air chamber and exhausts through the outlet.
5. Periodic compressed-air pulsing removes accumulated dust from the bags with cleaning frequency and duration adjusted by solid-state timers.
6. Dust falls into the hopper for removal through the discharge device.

Our many standard Jet-Aire models have a wide range of sizes and cloth areas in either square or rectangular arrangements. The SA and DA lines use nominal 4'' bags with no venturi necessary. Other model lines use nominal 6" bags with a venturi-in-cage assembly.

BASIC FEATURES IN A GRIFFIN JET-AIRE

• Exterior paint Griffin Blue. Custom colors available.
• Lift-off top access doors
• Magnehelic gauge
• 16 oz. polyester singed bags, 280° F max
• Galvanized steel cages with venturis
• -20" WG construction
• NEMA 4 electricals for continuous pulse cleaning
• Header pipe mounted and tested

• Structural support steel for 4' discharge clearance

• Rotary airlock

• Screw conveyor for larger models

• Walkways—upper and lower—with bar grating and ladder

• Walk-in plenum

• Induced draft fan

• Dampers

• On-line demand cleaning

• Special electrical requirements

• Double dump valves

• Stairway package

• Special discharge clearance

• Hopper level indicators & alarm

• Vibrators

• Dust recovery system

• Air compressor

• Motor starters

• Alternate paint colors

• Broken bag detector
