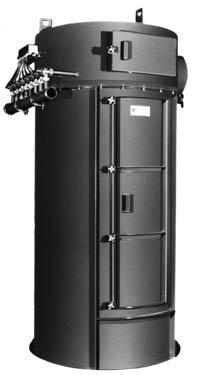

Easy to install, operate, and maintain, Griffin's cylindrical filter dust collectors are an efficient economical solution to dust and product recovery. These pulse jet units provide continuous fabric filtration for extended periods. And without internal moving parts, maintenance is kept to a minimum.

Like all of our dust collection systems, these units are built to be exceptionally rugged and ready to stand up to heavy-duty use. With a wide range of options, they'll bring you the flexibility to meet your application needs.

DESIGN FEATURES

• 56 standard models available
• Available with nominal 4" or 6" diameter filter bags
• Cloth areas from 50 sq.ft. to 1350 sq.ft. (larger custom models available)
• Standard units designed for -100" W.G. for collectors up to 62" diameter.
• Housing and hopper constructed of continuously welded HRS
• Control panel in NEMA 4 enclosure standard for all Cylindrical Filter models—shipped loose for field mounting
• Standard bag removal is from the side access door—top bag removal available as an option

VERSATILE AND EFFICIENT OPERATION

1. Dust laden air enters the collector through the hopper or through a tangential inlet.
2. An internal baffle distributes the dirty air within the housing, reducing air velocity.
3. Heavier particles drop into the hopper, while lighter particles collect on the outside surface of the bags.
4. Filtered clean air flows to the clean-air chamber and exhausts through the outlet.
5. Periodic compressed-air pulsing removes accumulated dust from the bags with cleaning frequency and duration adjusted by solid-state timers.
6. Dust falls into the hopper or bin for removal

• Fans – available as required, suitable for grade level, side or top mounting on collector
• Material deflector – includes tangential inlet with inertial separator to force heavier particles downward
• Hopper – standard 60° slope with flanged discharge
• Other accessories – elevated walkway, railing, ladder, slide gate, rotary air lock, insulation, support steel, safety grating

• ASME pressure vessel design available

• Explosive conditions – NEMA 7 or 9 control panels, NEMA 7 or 9 solenoid enclosures, pressure relief devices, electrical grounding

• Special construction – stainless steel or special alloy steels

• Sanitary finishes – available for food grade applications

• Special surface finishes – sand blasting and epoxy coating

• Top bag removal

• Pressure gauges and switches – combination differential pressure switches/gauges, differential pressure switches

• Filter media – singed polyester felt is standard. Nomex®, polypropylene, fiberglass, acrylic and Ryton® also available.

• Filter media finishes – PTFE membrane, acrylic, glazing and other acid resistant finishes also available.

Nomex® - Registered Trademark of Dupont
Ryton® - Registered Trademark of Phillips Petroleum Co.

For additional information on sizing or application call today toll free

866-630-3500

or e-mail us today sales@globaltecheng.com
