Griffin Environmental offers numerous models within the
Clean-A-Batch system capable of providing dust free operation for
your batch plant. Whether your needs are for Transit Mix (dry),
Central Mix (wet) or Combination; whether it is high or low
production; a stationary or portable plant; we have the equipment to
give you the assurance of meeting today's environmental standards.
There are three steps during the batching operation where dust
must be controlled. These three are the silo filling, weigh batching
and truck loading. The company offers two alternatives for your
equipment selection. There can be a single Central Baghouse
which draws the dust from each of these points, or smaller
Individual Dust Collectors located at the points of dust
generation.
Our factory engineers are available to help you decide upon the
most effective and economical approach for your particular plant.
Either way, these systems are capable of dust control far exceeding
the 99% efficiency required for clean operations.
|
|
 |
|
Clean-A-Batch
Systems
Components
For . . . .
|

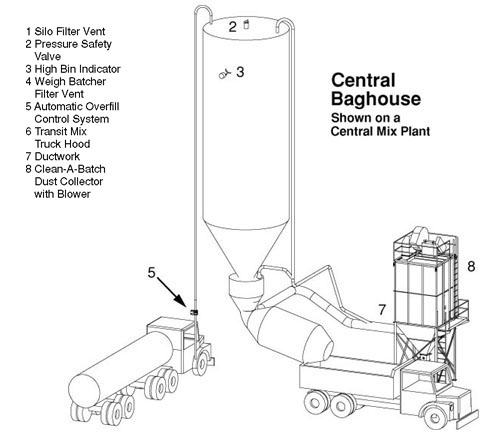

Central
System |

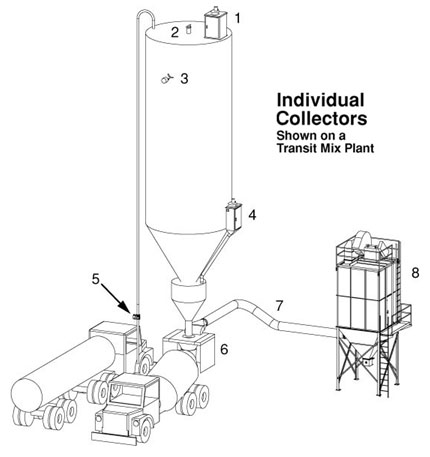

Individual
Collector System |
- Baghouse with fan
- Dust Capture Hood
- Ductwork Package
- Hood & Scavenger Ducts
- Automation Panel
|
- Collectors:
Baghouse-Silo Filter Vent-Batcher Vent
- Dust Capture Hood
- Ductwork Package, Hood
- Automation Panel
|
|
|

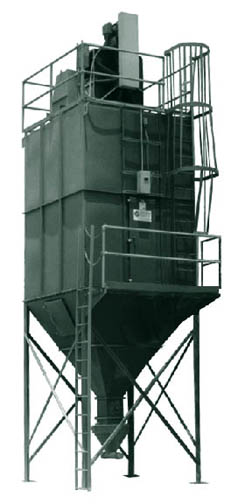

Clean-A-Batch
Baghouses
Shaker Model Baghouses are intended for
intermittent batching, generally under 20 loads per hour, where
there is an interval of 30 seconds or more allowing the bags to be
shaken free of dust after several loads. Only electrical energy
required.
Jet-Aire Baghouses are used for high
production continuous batching. Requires compressed air and
electrical hook-up for continuous bag cleaning.
|
|
All Griffin
Clean-A-Batch Baghouses feature as standard:
- 12 gauge all welded steel
construction designed for -20" W.G.
- Polyester bags
- Structural steel for 4'0"
clearance
- Pyramidal hoppers with manual
rotary gate.
|
|
SuctionHoods

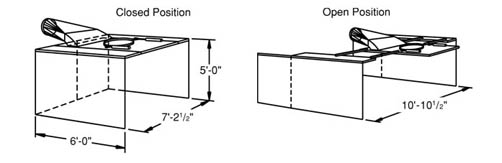

Transit Mix Drive Thru Hood
TH 90 (Pat. # 5,191,909 and
5,345,982)
Permits drive through operation. Open position allows accurate truck
positioning, also adjustable in open position to accommodate
obstructions.
Tilt Mixer
Retractable Hood
13 TGA
A Tilt Mixer Retractable Hood
is also available which captures dust at the discharge end of the
mixer.
Scavenger Ductwork Package
(For Central Baghouse System)
Galvanized steel ductwork of 6" and 8" diameter designed for two
silo pickup points and one weigh batcher; provides for distances of
15' horizontal and 60' vertical.
Hood Ductwork
Package
(For Individual Collector System)
Easily assembled galvanized steel ductwork consisting of:
- Four 5' straight sections
- Two 90 deg. elbows
- Two adjustable nipples
- 5'-0" flexhose
Transit Mix One Way
Truck Hood 13 BID
The top section is of all steel
construction with rubber sides and front flap. Stationary hood is
designed for back-in or drive-in loading.
|
Dust
Reclaim Systems
Two DRS systems are
available for returning collected dust from the baghouse hopper to
the silo.
DRS-4 & DRS-5 For use with
truck blower and 4" or 5" fill line. Includes 8" x 8" heavy duty
airlock with 1/2 hp460/3/60 TEFC motor, fill line adapter and ON/OFF
switch control mounted to baghouse hopper.
DRS-3 For use with independent blower and 3" fill line.
Includes 8" x 8" airlock with 1/2 hp 460/3/60 TEFC motor and 3" fill
line adapter.
EXP4LL pressure blower with 7-1/2 hp 460/3/60 TEFC motor and drive,
silencer, inlet filter and check plate assembly. Included are 8' of
3" high pressure flexible hose (blower to adapter) and 15' of 3"
hose (adapter to silo line). Silo line not included.
Automation panel is available |
Accessories and
Options
- Walkway platform and upper access
ladder, railings
- Control panel
- Magnehelic gauge
- Pressure differential switch
- High level indicators silo &
baghouse hopper
- Silo pressure relief valve
- Support steel providing for
drive-through clearance under the baghouse discharge, 13' wide &
12' high
|
|
|
|
